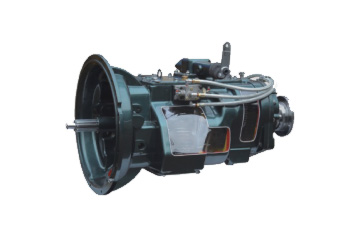

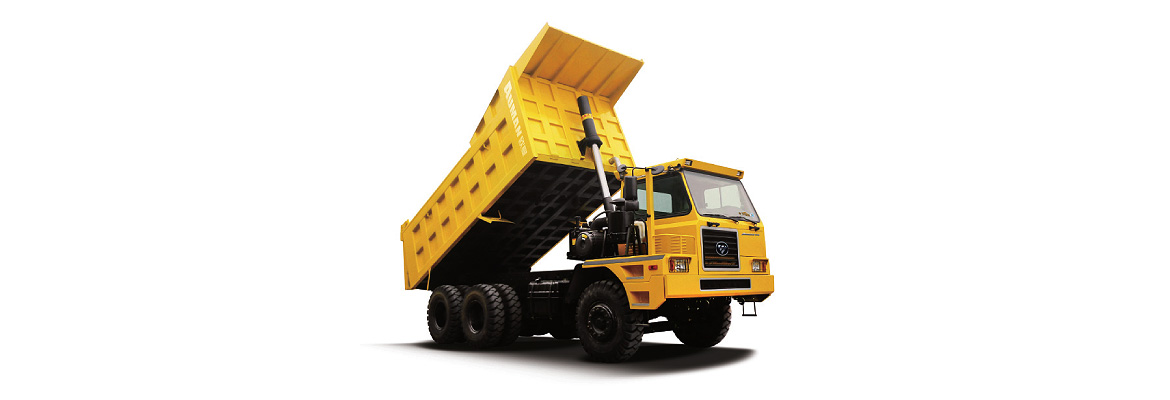

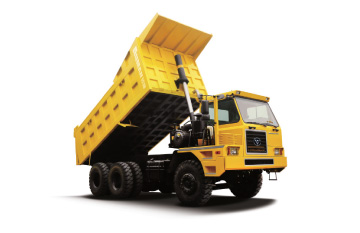

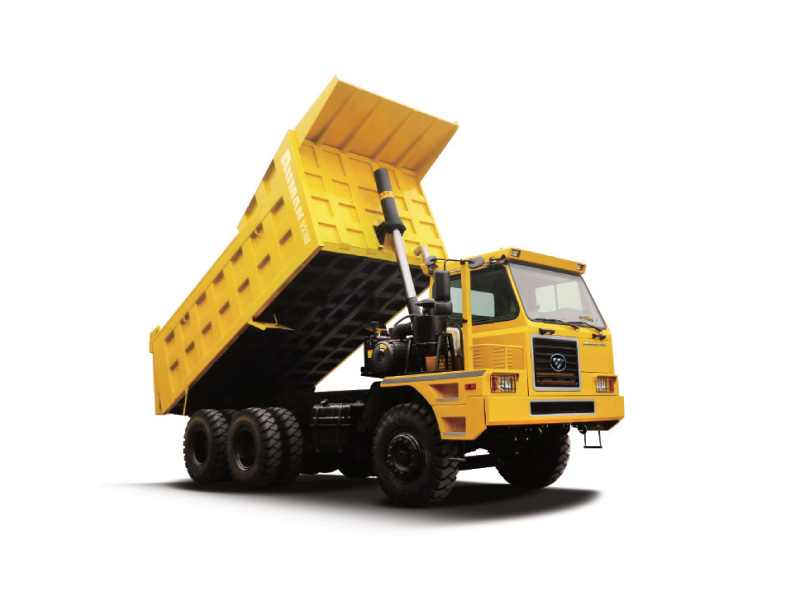

This truck is equipped with the Weichai 12L high-displacement and high-power engine with a torque up to 1750N•m, the Meritor heavy-duty axle with a maximum torque of 2200N•m, the FAST reinforced 10-gear transmission and the PTO device with a torque up to 700N•m. After being coordinated by Benz technology system, its power system has a high output torque and a strong gradeability up to 43%.

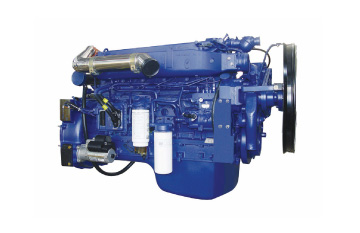

The Weichai high-displacement 12L engine with mature technology and the injection pump made by Bosch technology are adopted, providing a reliable power system; the reinforcement design of key parts, chassis system, suspension and rear axle boost the reliability completely; the adoption of Benz technology realizes the pertinent matching design based on the actual use conditions of the vehicle; it can adapt to the bad road conditions, and has good transverse stability and strong rollover resistance.

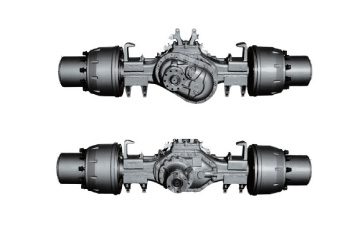

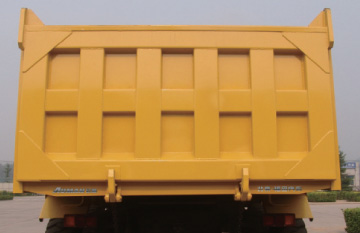

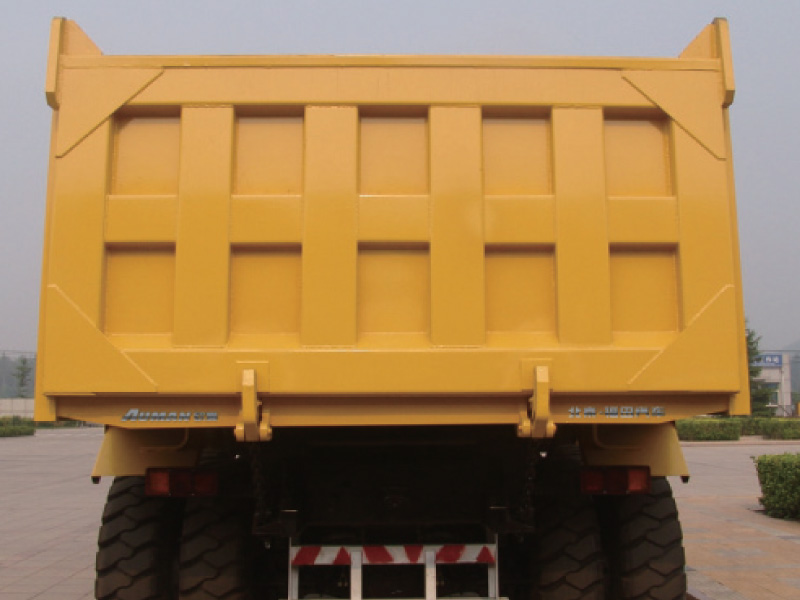

The strongest Meritor axle, the vehicle frame made of high strength material, the optimized reinforced and widened suspension system, the reinforced front and rear leaf springs and balance shaft are equipped; the 14.00-24 engineering tires are optional; the trunk is lengthened to 5800mm and widened to 3000mm, wider than the ordinary widened mining truck; the width of bottom plate is up to 20mm; the loading capacity of this truck is higher than that of ordinary mining truck by 30%.
The loading capacity of front axle is 12t and that of middle and rear axles are 25t respectively. So, under standard condition, the loading capacity of whole vehicle is up to 62t, and the maximum of that can achieve 70t, which is higher than other similar products .
Its great ground clearance and good trafficability can meet the work conditions of various mines and large constructions sites. The truck is designed pertinently based on the bad road conditions of mining truck, and its key parts are reinforced; the mature golden power assembly is adopted; the Benz technology is adopted for professional matching. Therefore, the truck has a high reliability and can work all day long

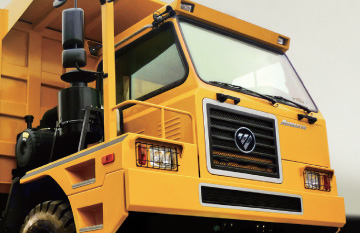

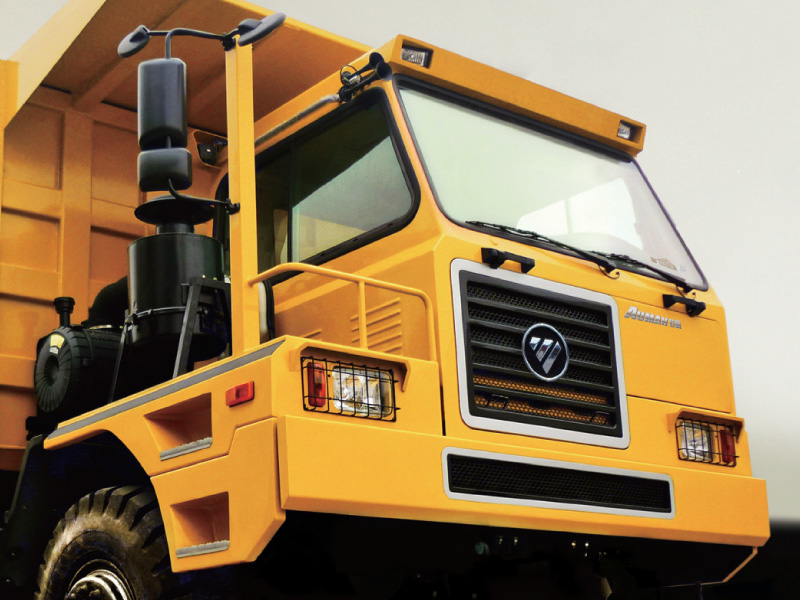

Appearance of cab

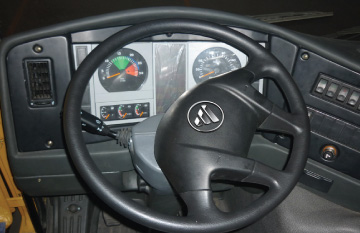

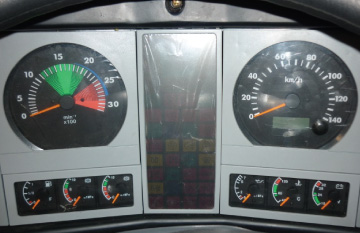

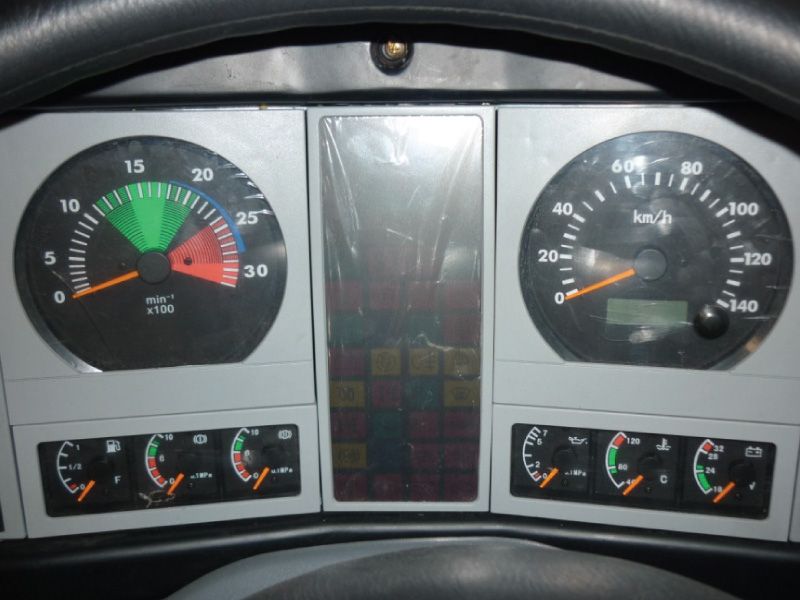

Integral instrument panel

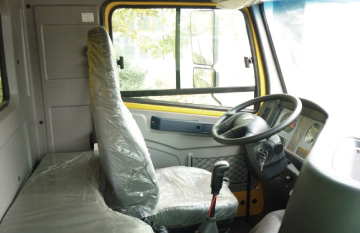

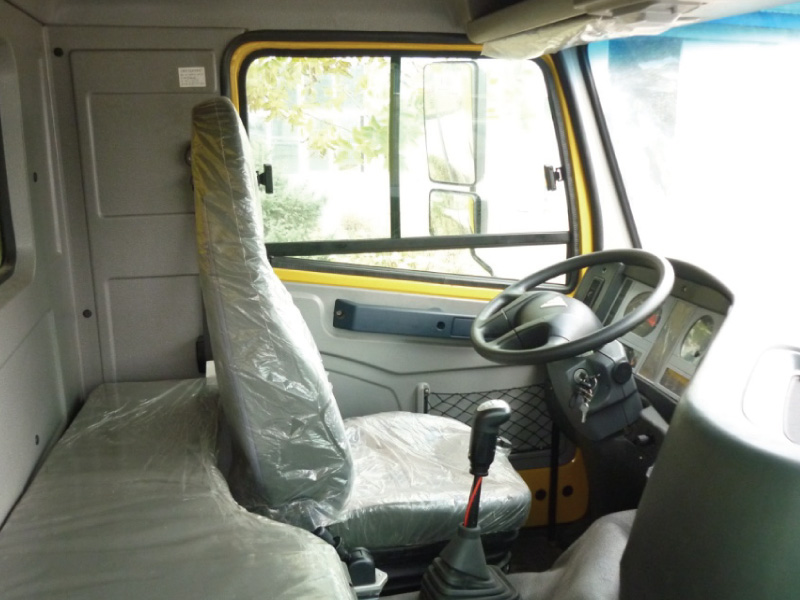

Large-space cab

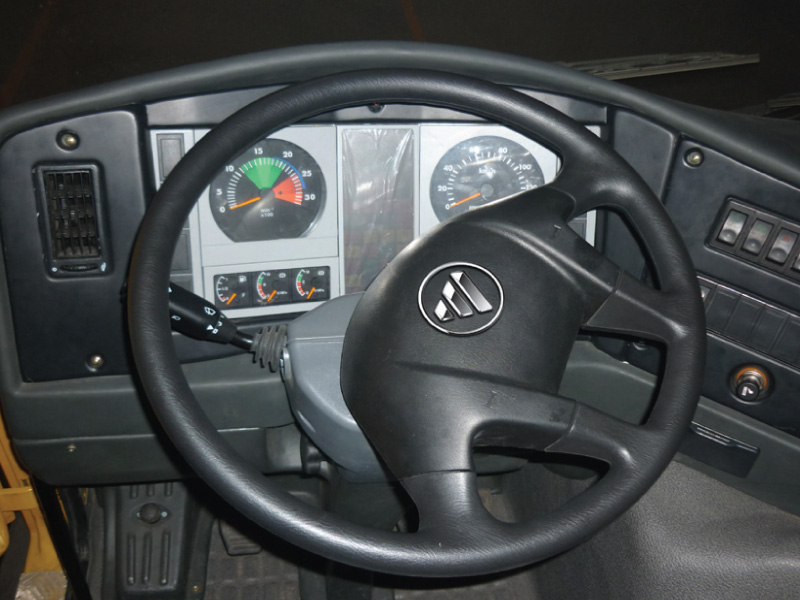

The steering wheel

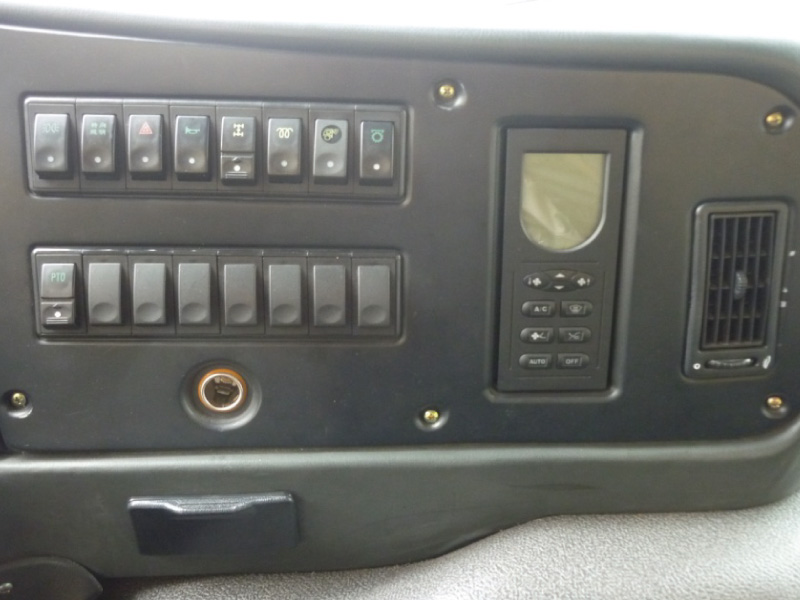

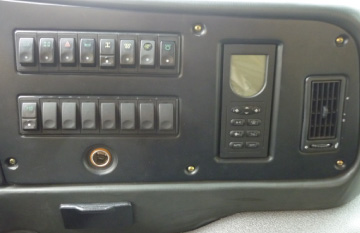

Integral control panel
| Specification | ||
|---|---|---|
| Drive style | 6x4 | |
| Steering wheel position | Left hand | |
| Product parameters | ||
| Vehicle model | BJ3655 DVWKB-1 | |
| Complete vehicle dimension | ||

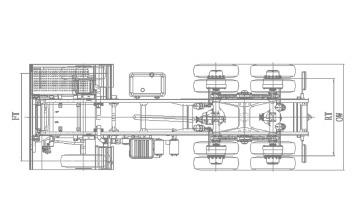

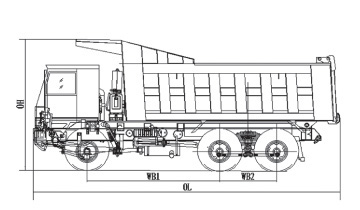

| WB1+WB2+WB3 (mm) | 3750+1600 | |
| Overall dimensions ( LxWxH ) (mm) | 8746X3057X3915 | |
| Inner dimensions of the cargo body (LxWxH)mm | 5800X2800X1500 | |
| Wheel track ( Front/Rear ) (mm) | 2500/2252 | |
| Complete vehicle mass parameter | ||
| Chassis kerb weight (kg) | 23800 | |
| Rated payload (kg) | 51040 | |
| GVW (kg) | 65000 | |
| Complete vehicle performance | ||
| Maximum speed (km⁄h) | 55 | |
| Maximum slope of climb ( % ) | 43 | |
| Product configuration | ||
| Cabin | Type | Single side cabin 2130 |
| Engine | ||
| Model | WD12.375 | |
| Type | In-line,six-cylinder, water cooling, four-stroke, DI, turbocharging, intercooling, diesel engine. |
|
| Displacement (L) | 11.596 | |
| Max power (ps⁄rpm) | 375⁄2200 | |
| Max torque (Nm⁄rpm) | 1500⁄1300~1600 | |
| Clutch | ||
| Type | Single disc, diaphragm spring | |
| Plate diameter | Φ430 | |
| Gearbox | Model | 10JSD220A(QH70) |
| Brake | ||
| Service brake | Dual circuits pneumatic brake | |
| Parking brake | Energy-accumulating spring air cut-off brake | |
| Auxiliary brake | The engine exhaust brake | |
| Suspension | ||
| Front suspension⁄leaf spring number | Longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar,13 |
|
| Rear suspension⁄leaf spring number | Longitudinal leaf spring with balance suspension⁄14 | |
| Rear axle | Rated load ⁄ Gear ratio | 25T⁄11.39 |
| Tyre | ||
| Model | 13.00-25 | |
| Quantity | 10+1 | |
| Steering | Model | 13.00-25 |
| Fuel Tank | Capacity ⁄ Material | 1380L⁄Aluminium |
| Electrical system | ||
| Rated voltage | 24V | |
| Battery | 12⁄6-QA180x2 | |
