| SPECIFICATIONS | |||
|---|---|---|---|

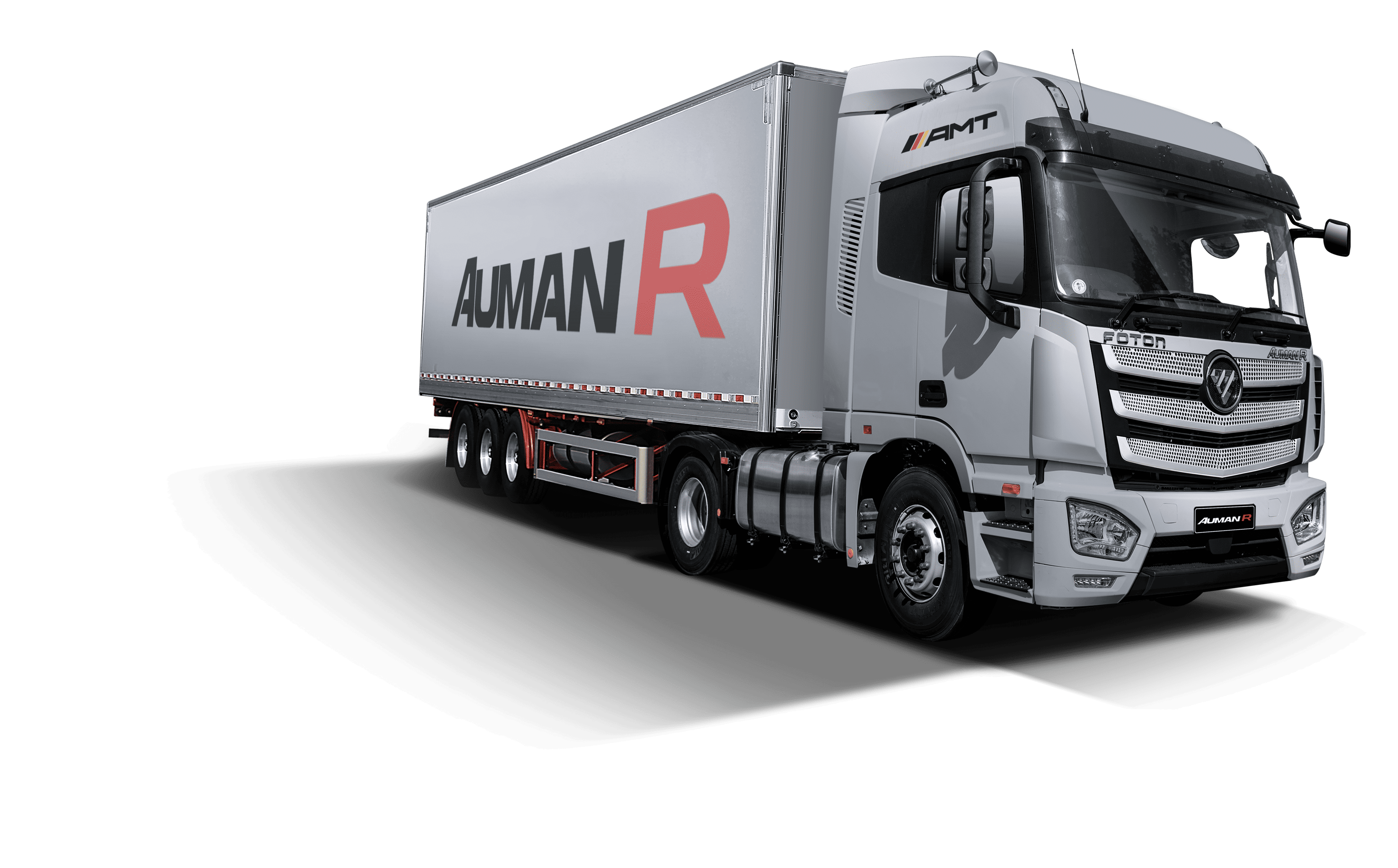

| Vehicle Model | Auman BJ4189A | Auman BJ4189T2 | |
| PERFORMANCE | |||
| Configuration | 4x2 | ||
| Designed Gross Combination Weight (kg) | 55000 | 55000 | |
| Minimum Turning Radius(m) | 7 | 7 | |
| Maximum Speed(km/hr) | 90 (with Speed Limiter) | ||
| Maximum Gradeability(%) | 22 | 25 | |
| ENGINE | |||
| Model | Cummins ISGe5-430 | ||
| Emission | Euro V | ||
| Type | Water Cooling, Four Stroke, Direct Injection, Turbocharged Intercooled | ||
| Number of Cylinders | 6- Inline Cylinder | ||
| Displacement （L） | 11800 | ||
| Rated power （Ps/rpm） | 430/1900 | 430/1900 | |
| Max torque （N.m/rpm） | 2200/1000-1400 | ||
| TRANSMISSION | |||
| Model | AMT - ZF 12TX2420TD | ||
| Speed ratio | 1st: 16.69, 2nd: 12.92, 3rd: 9.93, 4th: 7.67, 5th: 5.90, 6th: 4.57, | ||
| Speed ratio | 7th: 3.66, 8th: 2.83, 9th: 2.17, 10th: 1.68, 11th: 1.29, 12th: 1.00, | ||
| Speed ratio | Rev-1: 15.54 , Rev-2: 12.03 | ||
| CHASSIS | |||
| Clutch | Single Disc, Dry Type, Diaphragm Spring φ430 | ||
| Front Suspension | Parabolic Leaf Spring (3pcs) with Anti-roll bar | ||
| Rear Suspension | Electronic Air Suspension System (ECAS), 4-Air Bellows with 2-Levelling Valves | Longitudinal Semi Elliptic Leaf Spring (5+4pcs) with Anti-roll Bar | |
| Shock Absorber | Double Acting at Front & Rear | ||
| Tyre and Wheels | 295/80R22.5 | ||
| Steering | Telescopic Steering with Hydraulic Power Assist | ||
| Service Brake | Full Air Brake with brake lining warning, Auto adjuster, Dual Air Line, ABS, ASR | ||
| - Front | Disc | Drum | |
| - Rear | Disc | Drum | |
| 5th Wheel Coupler King Pin | φ50mm | ||
| Ad Blue Tank | 60L | ||
| Fuel Tank | 700L / Aluminium | ||
| Battery | 240AH 12 Volt x 2 | ||

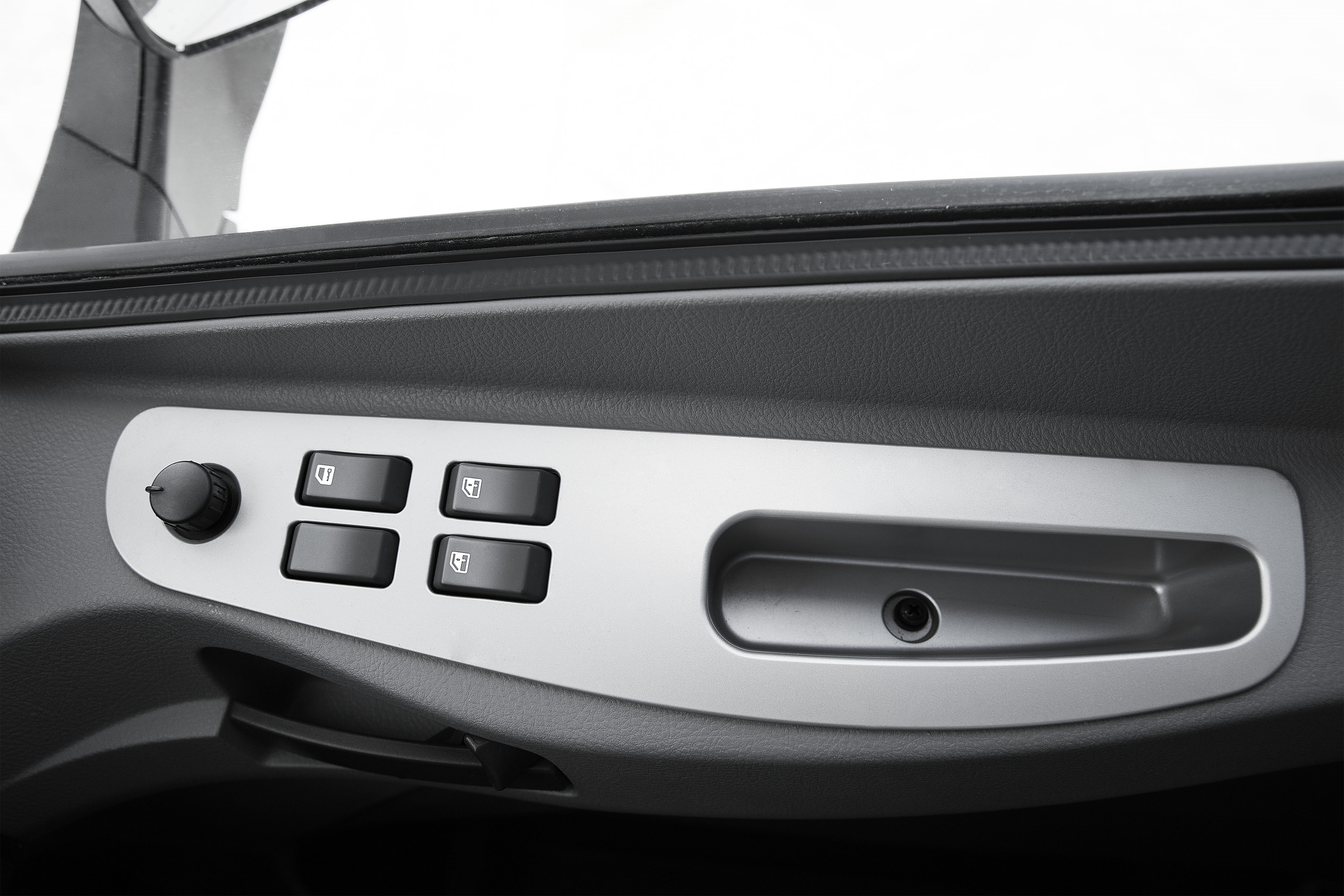

| Others | Power Windows, Central Locking, Electric Side Mirrors, Electric Tilting Cabin, Air Suspension Cabin, Auto Headlamp, Side Mirror Heater | ||
| WEIGHT(kg) | |||
| Curb Weight | 8084 | 8008 | |
| Designed Front Axle Load | 7000 | 7000 | |
| Designed Rear Axle Load | 13000 | 13000 | |
| DIMENSIONS(mm) | |||
| Wheelbase (WB) | 3600 | 3600 | |
| Overall dimensions (OL) | 6085 | 6085 | |
| Overall dimensions (OW) | 2490 | 2490 | |
| Overall dimensions (OH) | 3900 (with Air Foil) | 3430 (with Air Foil) | |
| Front Tread (FT) | 2020 | 2050 | |
| Rear Tread (RT) | 1800 | 1865 | |
Note: As product improvements may be introduced at any time, specifications are subject to change without prior notice
