| SPECIFICATIONS | |||
|---|---|---|---|

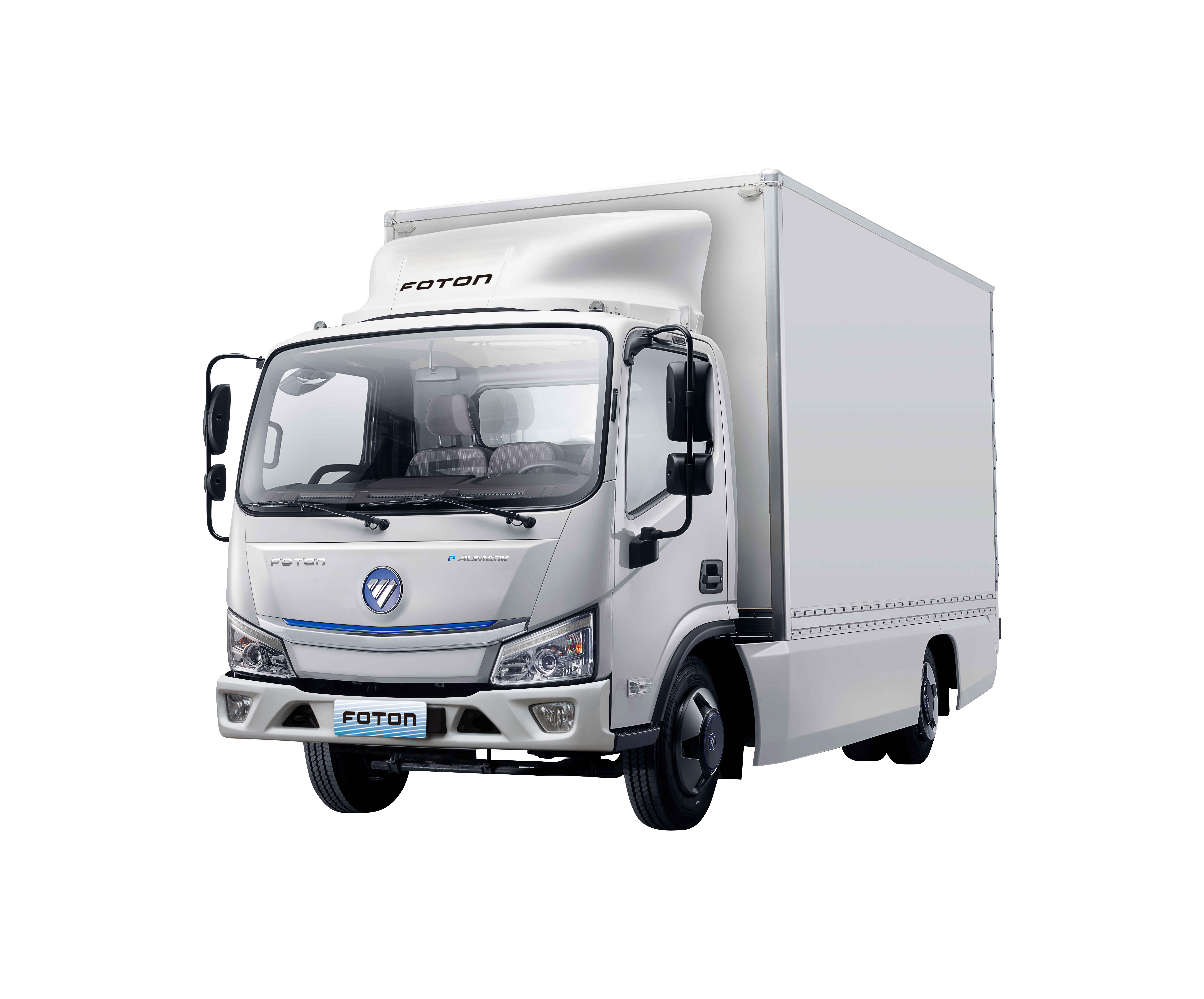

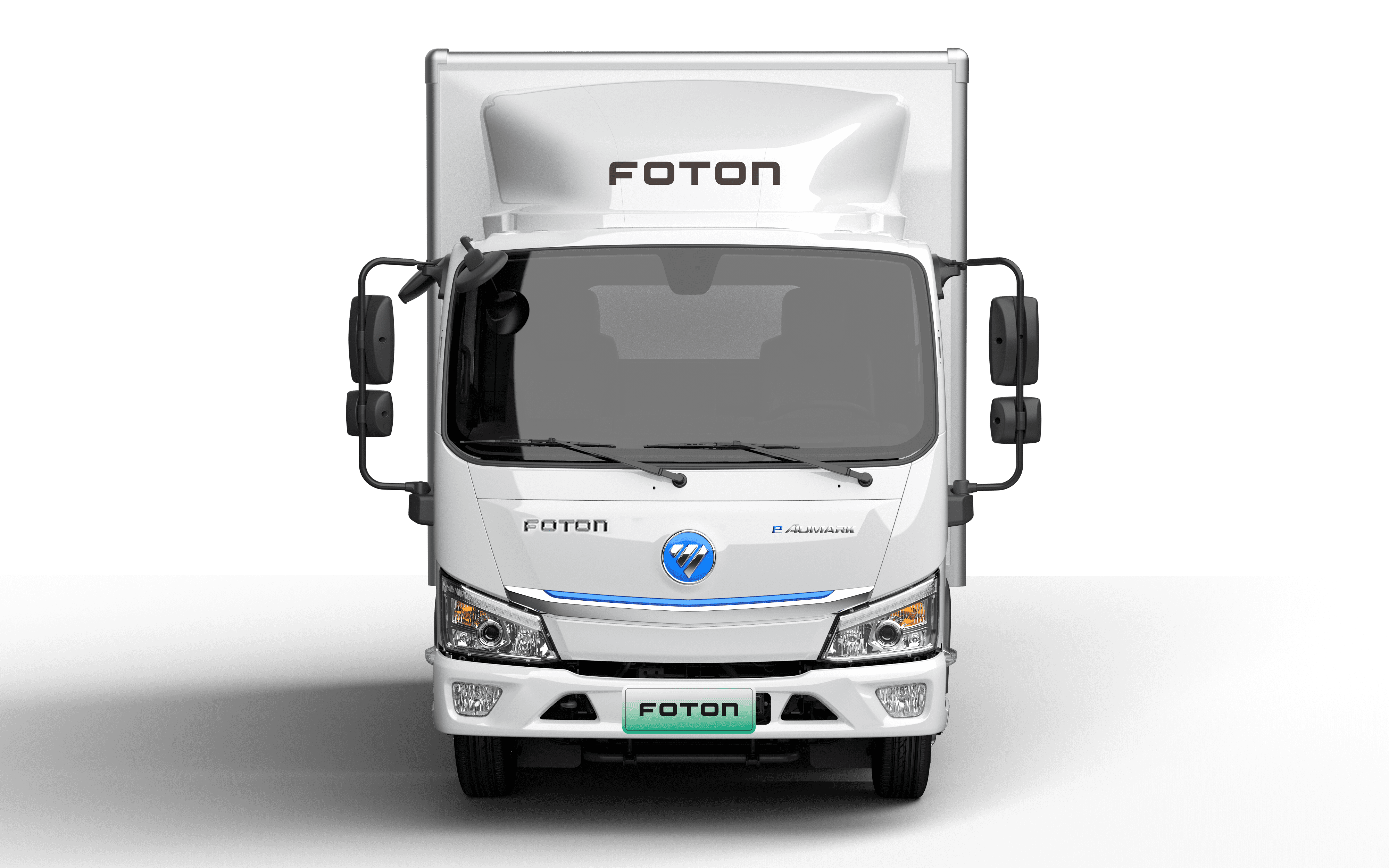

| Model | FOTON e-AUMARK | ||
| Wheelbase (mm) | 3,360 | ||
| Vehicle dimensions (mm) | 5,960 x 1,960 x 2,210 | ||
| GVW (kg) | 6,000 | ||
| Curb weight (kg) | 2,430 | ||
| Driving mileage per charge (km) | Up to 180 (WLTP) | ||
| Brake system | Front disc and rear drum hydraulic brakes | ||

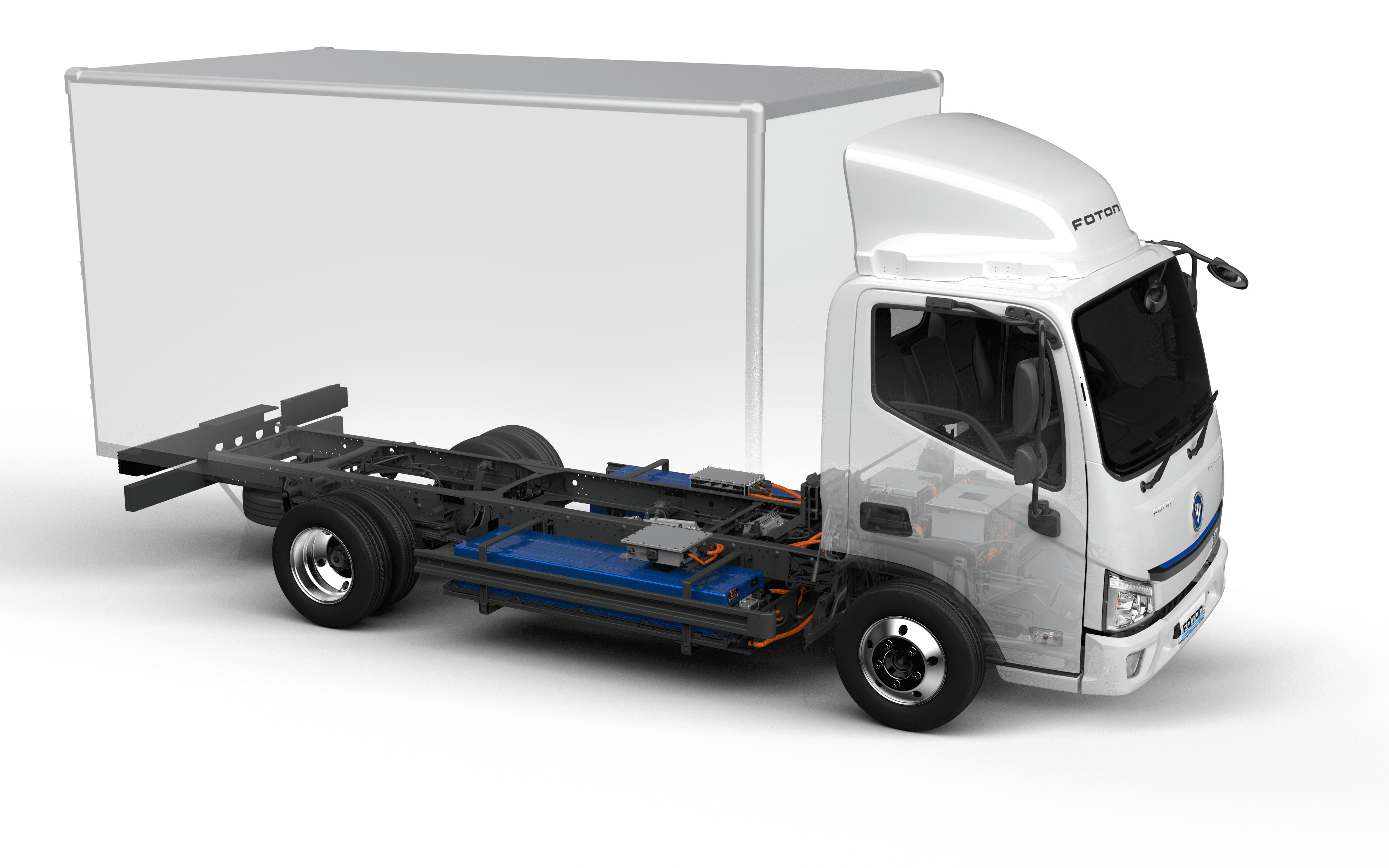

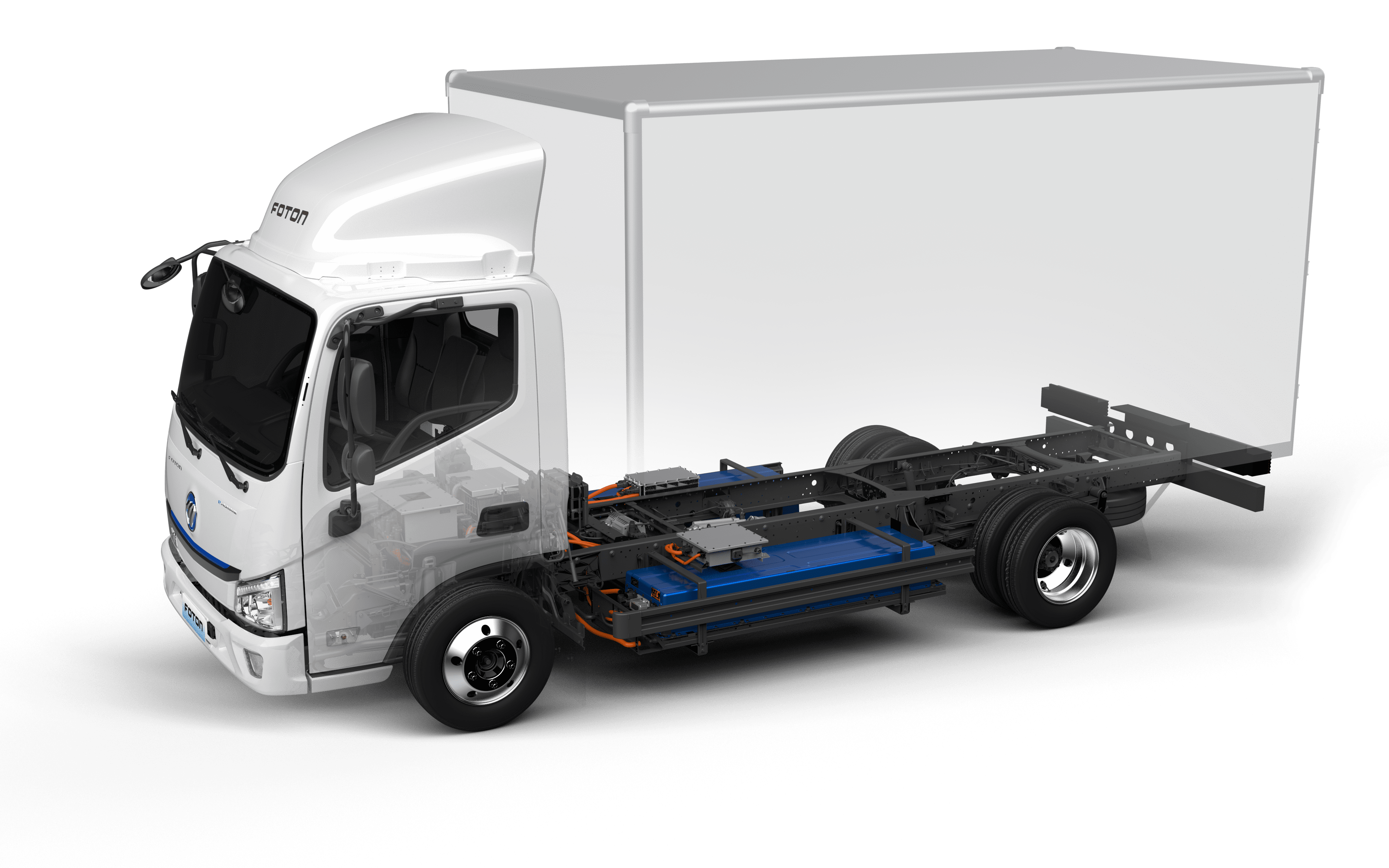

| Battery | |||

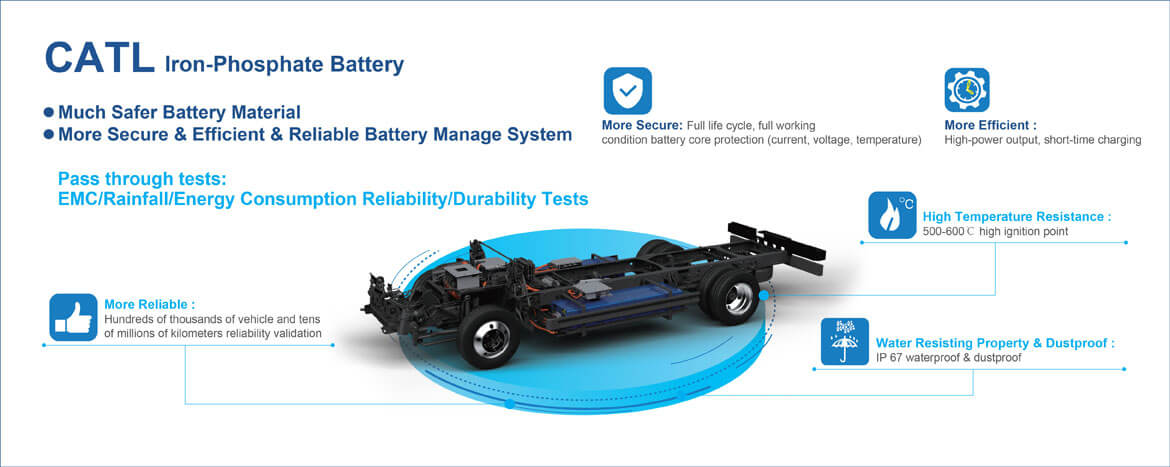

| Battery brand | CATL | ||
| Battery type | Lithium iron phosphate | ||
| Cooling method (traction battery) | Liquid cooling system | ||
| Capacity (kWh) | 81.14 | ||
| Voltage (V) | 540.96 | ||
| Charging mode | AC / DC | ||
| AC charging power (KW) | 11KW | ||
| Charging time (normal temp) SOC20%-100% | DC: 1.5 / AC: 8 | ||

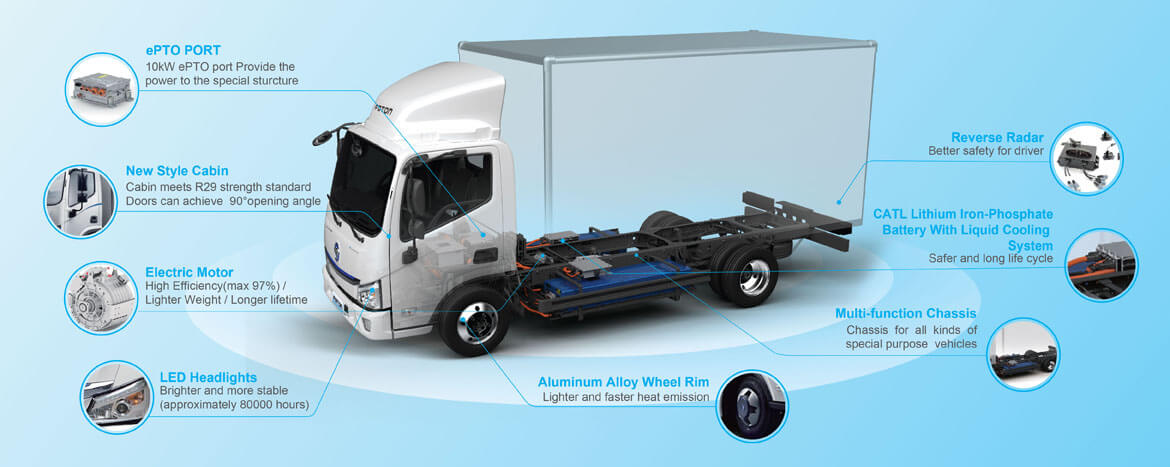

| Motor | |||
| Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power (kW) | 64/115 | ||
| Motor system peak torque (Nm) | >300 | ||
| Tyre | 205/75 R16 | ||

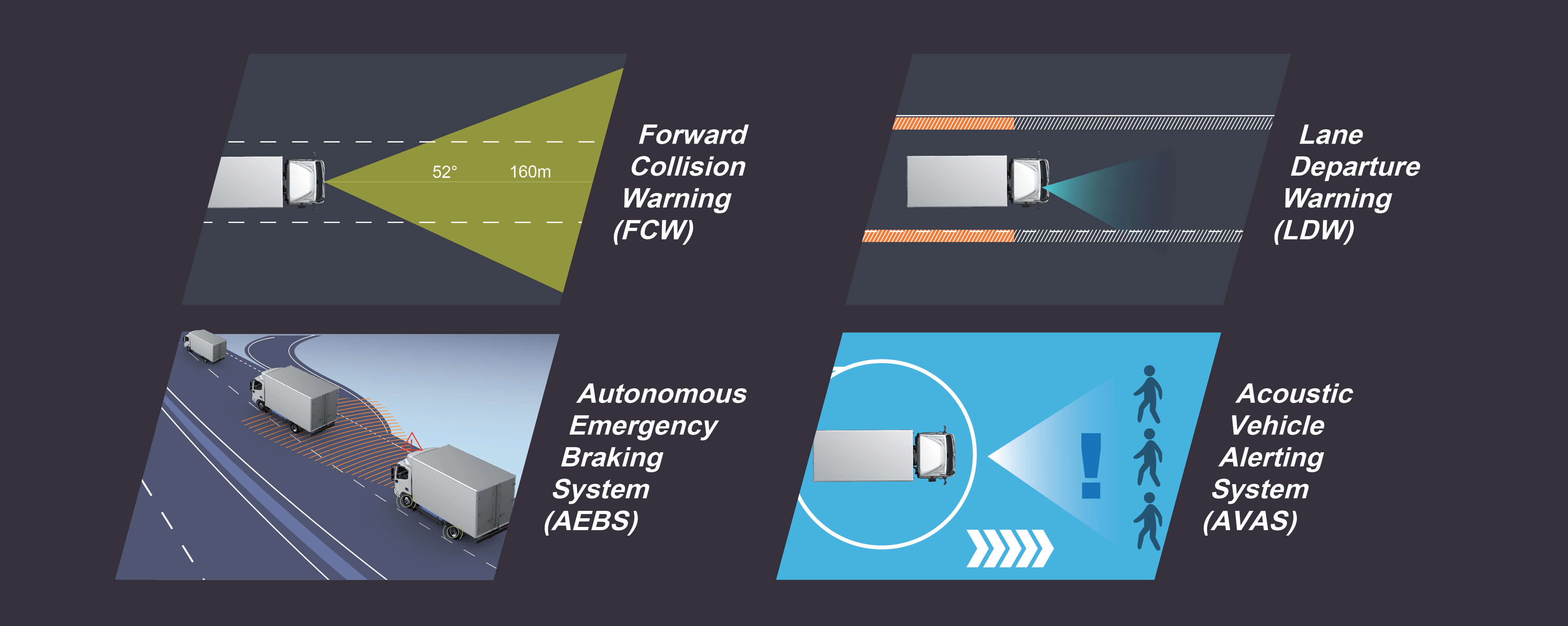

| Autonomous Emergency Braking System (AEBS) | ● | ||
| Lane Departure Warning (LDW) | ● | ||
| Forward Collision Warning (FCW) | ● | ||
| Reversing radar | ● | ||
All specification are subject to change without prior notice.
