| SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model | BJ1088VEJEA-RF | |||
| Drive System | 4 x 2 | |||
| ENGINE | ||||

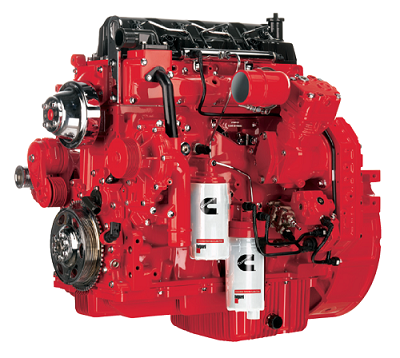

| Make & Model | Cummins ISF3.8s3154 | |||
| Type | Diesel, Turbocharged Intercooled, Four-Stroke | |||
| Number of Cylinders | 4 Cylinders in-line | |||
| Displacement | 3.76 | |||
| Rated Max. Output | 154 PS (115kW) @ 2,600 rpm | |||
| Rated Max. Torque | 500N-m (50.9kg-m) @ 1,200-1,900rpm | |||
| Emission Level | Euro 4 | |||
| Fuel Injection System | ECU Controlled High Pressure Common Rail, Bosch | |||

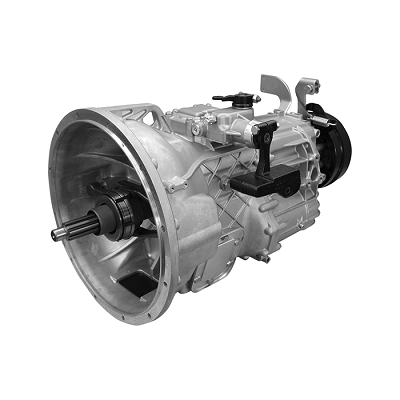

| TRANSMISSION | ||||
| Model | ZF6S558 | |||
| Type | 6-Speed Manual | |||
| Gear Ratios | 1st | 6.198 | ||
| 2nd | 3.287 | |||
| 3rd | 2.025 | |||
| 4th | 1.371 | |||
| 5th | 1.000 | |||
| 6th | 0.780 | |||
| Reverse | 5.681 | |||
| Final | 4.333 | |||
| WEIGHT & CAPACITIES | ||||
| Gross Vehicle Weight | kg | 7,500/9,000 | ||
| Curb Weight | kg | 2,995 | ||
| Front | kg | 1,860 | ||
| Rear | kg | 1,135 | ||
| Fuel Tank Capacity | L | 120, Aluminium | ||
| AXLE | ||||
| Front | Reversed Elliot, I-Beam | |||
| Front Axle Capacity (Design) | kg | 3000 | ||
| Rear | Banjo Type, Full Floating | |||
| Rear Axle Capacity (Design) | kg | 6,000 | ||
| SUSPENSION SYSTEM | ||||
| SUSPENSION | Front | 3 - Leaf Spring with Hydraulic Double Acting Shock Absorber | ||
| SUSPENSION | Rear | 8+6 - Leaf Spring with Hydraulic Double Acting Shock Absorber | ||
| TYRES & WHEELS | ||||
| Tyres | 215 / 75R17.5 | |||
| Wheels | 17.5 x 6.00, 6-Studs | |||
| BRAKES | ||||
| Service | Air Braking Dual Circuit with Antilock Braking System (ABS) | |||
| Parking Brake Type | Pneumatic Controlled Spring Brake Acting at Rear Wheels | |||
| Auxiliary | Exhaust Brake | |||
| STEERING | ||||
| Steering System | Hydraulic Power Assisted | |||
| Min. Turning Radius | m | 6.7 | ||
| ELECTRICAL | ||||
| Battery | 24V, 100 AH, 2pcs | |||
| DIMENSION | ||||
| Wheelbase | mm | 3,800 | ||
| Overall Length | mm | 6,920 | ||
| Overall Length | mm | 2,060 | ||
| Overall Height | mm | 2,280 | ||
| Front Overhang | mm | 1,110 | ||
| Rear Overhang | mm | 2,010 | ||
| Front Tread | mm | 1,762 | ||
| Rear Tread | mm | 1,615 | ||
All specification are subject to change without prior notice.
