| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Model | BJ1065VDJD4-FP | BJ1065VDJD6-FP | |||
| Configuration | 4 x 2 | ||||
| ENGINE | |||||

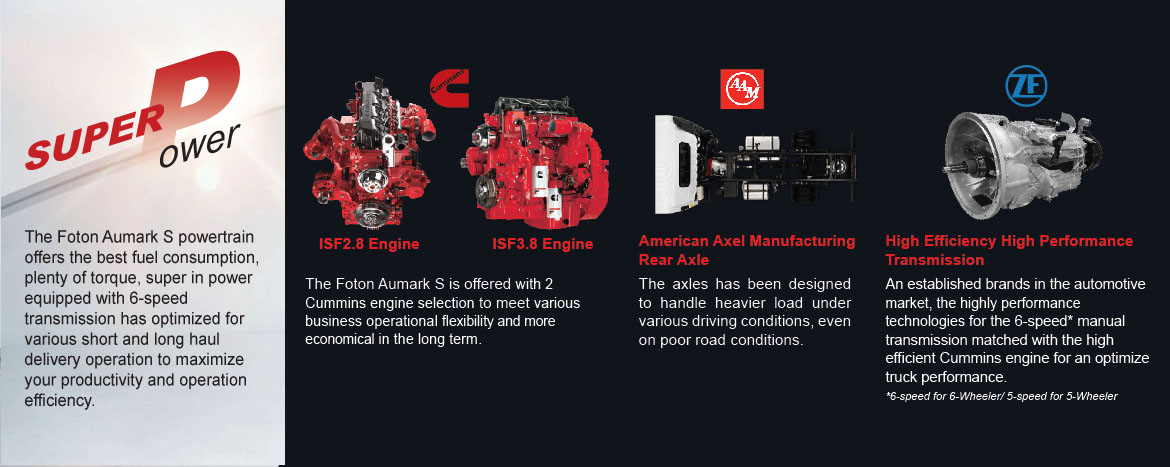

| Make & Model | Cummins ISF2.8s3129T | ||||
| Type | Diesel, Turbocharged Intercooled, Four-Stroke | ||||
| Number of Cylinders | 4 Cylinders in-line | ||||
| Displacement | (L) | 2.78 | |||
| Rated Max. Output | (PS/KW) | 129PS (96KW) @ 3,200rpm | |||
| Rated Max. Torque | (N-m/kg-m) | 310N-m (31.6kg-m) @ 1,600-2,700rpm | |||
| Emission Level | Euro 3 | ||||
| Fuel Injection System | ECU Controlled High Pressure Common Rail, Bosch | ||||
| TRANSMISSION | |||||
| Model | ZF5S368 | ||||
| Type | 5-Speed Manual | ||||
| Gear Ratios | 1st | 5.762 | |||
| 2nd | 2.922 | ||||
| 3rd | 1.638 | ||||
| 4th | 1.000 | ||||
| 5th | 0.782 | ||||
| 6th | - | ||||
| Reverse | 5.149 | ||||
| Final | 4.875 | ||||
| WEIGHT | |||||
| Gross Vehicle Weight | (kg) | 5,600 | |||
| Curb Weight | (kg) | 2200 | 2250 | ||
| - Front Axle | (kg) | 1,320 | 1,350 | ||
| - Rear Axle | (kg) | 880 | 900 | ||
| Fuel Tank Capacity | L | 80, Aluminium | 120, Aluminium | ||
| AXLE | |||||
| Front | Non-Devided Forged I-Beam | ||||
| Front Axel Design Capacity | (kg) | 2400 | |||
| Rear | Stamped & Welded Integral Axle Housing | ||||
| Rear Axel Design Capacity | (kg) | 3,500 | |||
| SUSPENSION SYSTEM | |||||
| Front | 3 - Leaf Spring with Hydraulic Double Acting Shock Absorber | ||||
| Rear | 5+2 - Leaf Spring ith Hydraulic Double Acting Shock Absorber | ||||
| TYRES & WHEELS | |||||
| Tyres | 215 / 75R17.5 | ||||
| Wheels | LW 17.5 - 6.00, 5-Studs | ||||
| BRAKES | |||||
| Service | Hydraulic with Anti-lock Braking System(ABS), Electronic Brake Distribution (EBD) & Brake Assist (BA) | ||||
| Parking Brake Type | Central Drum Brake | ||||
| Auxiliary | Exhaust Brake | ||||
| STEERING | |||||
| Steering System | Hydraulic Power Assistance | ||||
| Min. Turning Radius | m | 6 | 6.7 | ||
| ELECTRICAL | |||||
| Battery | 100AH | 12V, 120AH | |||
| DIMENSION | |||||
| Wheelbase | mm | 2,800 | 3,360 | ||
| Overall Length | mm | 5,400 | 5,960 | ||
| Overall Width | mm | 1880 | |||
| Overall Height | mm | 2260 | |||
| Front Overhang | mm | 1100 | |||
| Rear Overhang | mm | 1,490 | |||
| Front Tread | mm | 1,670 | |||
| Rear Tread | mm | 1,638 | |||
All specification are subject to change without prior notice.
