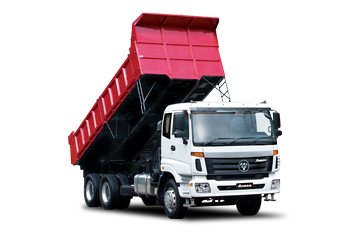

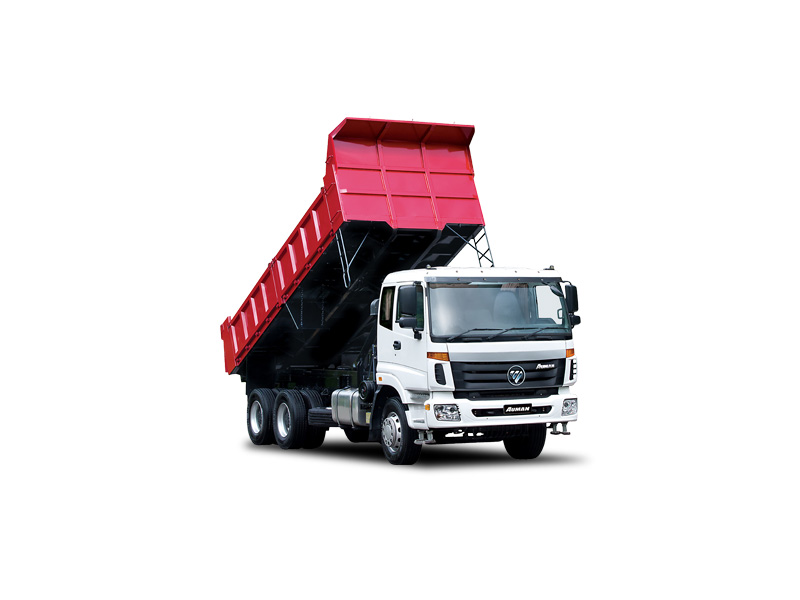

Auman │ BJ3253 │ Dump Truck │ 6x4

FOLLOW US

facebook twitter goolge plus

BJ3253

ABS Braking System, 9-Speed Transmission, Max Output 330ps

Highlight Feature of Bison bj3253


Engine Model

WD615.44, Euro II
Turbocharged intercooler
Displacement: 9,726
Output: 330ps @ 2,200rpm
Torque: 127kg.m @ 1,400-1,600rpm

Transmission Model

FAST 9JSD150T-B
9-speed transmission for better gear distribution and improve fuel economy

Braking System

Full air with ABS ensures excellent braking effort

Hub Reduction

Provides better gradeability and tractive effort.


Rear Axle

Heavy duty rear axle with differential lock to withstand heavy load.

Stabilizer Bar

Front and Rear Stabilizer bar reduces rolling on uneven and winding road operation.


Undercarriage Protector

To prevent damage to intercooler and radiator system.

Fuel Tank

Lockable aluminum type
Capacity - 350L


Cabin Suspension

Suspension cabin provides comfortable ride and reduces driver fatigue on long haulage



Driver Seat

Multiple angle reclining seat with armrest coupled with suspension seat and height adjuster to suit all driving position



Sleeping Berth

Cabin crew to able to have a comfortable rest with the Spacious sleeping berth on long haulage journey



Cabin Interior

Roomy cabin interior for better comfort on long haulage.



Instrument Panel

Well layout for easy reading and control of vehicle.



Cabin Interior

Foldable food tray with cup holder for cabin crew convenience.



Storage Compartment

Special luxury interior with interior roof mounted glove box

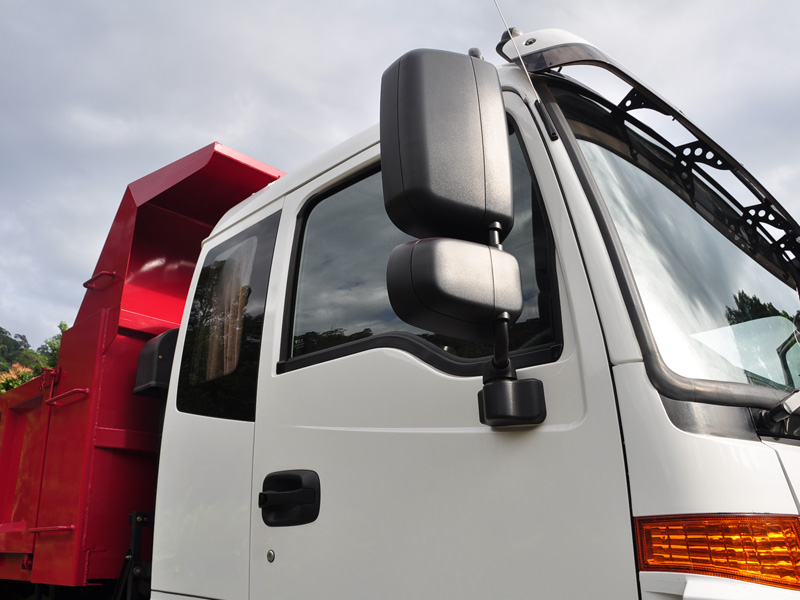

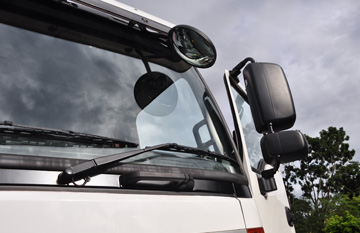

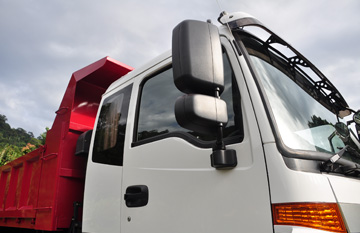

Exterior Mirror

Multiple mirrors provides all round visibility for better control of vehicle



Access Steps

Lighted for crew safety during night operation. Foldable lower step prevent damage for off-road operation.

PERFORMANCE
GVW 24,000
Minimum Turning Radius (m) 10.5
Maximum Speed (km⁄hr) 100
Maximum Gradeability (%) 45
ENGINE
Make and Model Weichai, WD615.44, EURO II
Type Water Cooled, Turbocharged Intercooler
Number of Cylinders 6 Cylinder Inline
Bore x Stroke (mm) 126 x 130
Total Piston Displacement (cc) 9,726
Max. Output (ps) 330 @ 2,200 rpm
Max. Torque (kg.m) 127 @ 1,400 - 1,600 rpm
Compression Ratio 15.5 :1
Lubrication System Forced Feed by Gear Pump
Cooling System Water Cooled
Fuel System
- Fuel Injection Pump Direct Injection
Air Cleaner Dry Paper Element Type
TRANSMISSON
Make and Model FAST, 9JSD150T-B
Type 9 Forward Speed & 1 Reverse Speed
Gear Ratios 1st : 12.65 , 2nd : 8.38 , 3rd : 6.22 , 4th : 4.57 , 5th : 3.40
6th : 2.46 , 7th : 1.83 , 8th : 1.34 , 9th : 1.00
Rev : 13.22
Gear Shift Manual Shift
Final Reduction Ratio 4.8 (Optional - 5.73)
CHASSIS
Clutch Single Disc, Dry type, Diaphragm Spring
Front Axle Reverse "Elliot", Drop forged " I " Beam
- Front Spring Semi-elliptic Leaf Spring with Stabilizer Bar
- Width x Span x Leaves 90 x 1,800 x 9
Rear Axle Full Floating Pressed Steel Banjo Type Housing, Hub Reduction
- Rear Spring Trunnion Mounted Semi-elliptic Leaf Springs with Stabilizer Bar
- Width x Span x Leaves (Main) 90 x 1,350 x 12
Shock Absorbers Telescopic Double Acting
Wheels and Tyre
- Tyres (Front) 295⁄80R22.5
- Tyres (Rear) 295⁄80R22.5
- Rim 8.25 x 22.5
- Spare Wheel 295⁄80R22.5
Steering Hydraulic Power Assistance
Service Brake Full Air Brake, Dual Air Line, ABS
- Front Drum
- Rear Drum
Parking Brake Pheumatically Control Brake Acting on Rear Wheel
Auxiliary Brake Exhaust Brake
Frame Ladder Type
Fuel Tank (L) Aluminium ⁄ 350 L
Electrical Equipment 24 Volt
- Battery 165AH 12volt x 2

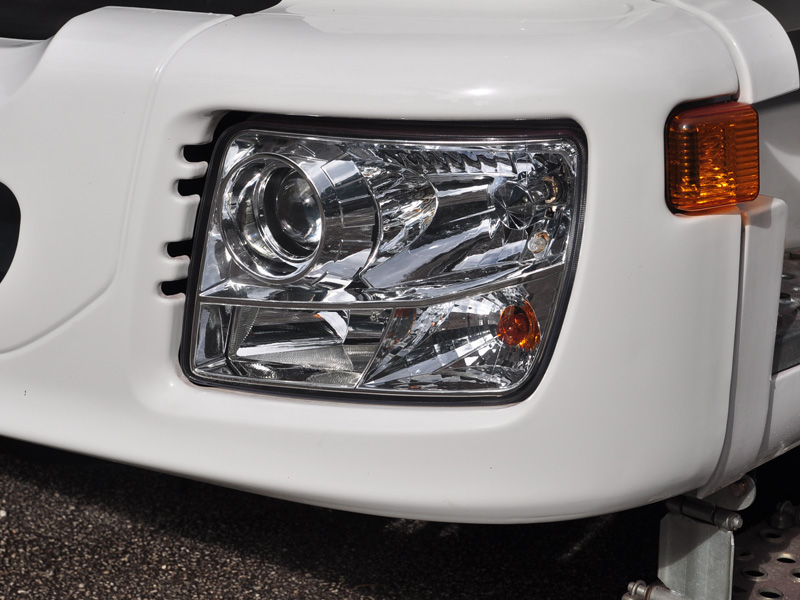

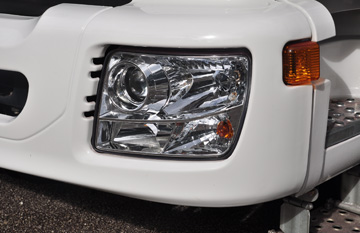

- Headlights Filament Headlamp
Others Stoplight, Licence Light, Fog lamp
Turn Signal, Back-up Light, Air Horn
WEIGHT (kg)
Chassis with Cab 9,400
- on Front Wheels 5,000
- on Rear Wheels 4,400
Designed Gross Vehicle Weight 26,500
- Designed Front Axle Load 7,500
- Designed Rear Axle Load 13,000
- Designed Rear 2nd Axle Load 13,000
DIMENSIONS (mm)
Wheelbase (WB) 4,100 + 1,350
Overall Length (OL) 8,870
Overall Width (OW) 2,495
Overall Height (OH) 3,230
Ground Clearance (GC) 295-320
Front Tread (FT) 2,005
Rear Tread (RT) 1,865
Front Overhang (FOH) 1,532
Rear Overhang (ROH) 1,888

All specification are subject to change without prior notice.

.
